Resin roofing tile for villa

Collect
  • 商品说明

                                      Wholesale price resin roof tiles




Product Detail

Material of Roof Tile

Synthetic Resin, ASA   synthetic resin

Application

residential house, slope   roofing, workshops, warehouse, villas, pavilions

Wave spacing

160mm

Color

Purplish red, Bluish grey, Dark   green, Blue, Brick red

Wave height

30mm

Length

Customized according to the   thimes of pitch

Pitch

219mm

Product Keywords

wholesale price highly fire   resistant discount insulated roof tiles prices,weather resistance bamboo   corrugated roofing sheet,waterproofing trapezoid curving heat proof plastic   corrugated roofing sheet



 Product  Advantage:

1.save cost
2. Loading bearing: It can load 150 kg per square meter evenly;
3. Light weight: 5-6.0kg/square meter;
4. Water resistance: 100%;
5. Fire resistance: Self-extinguish off fire;
6. Anti- corrosion;
7. Impact resistance and low temperature resistance;
8. Sound and heat insulation;
9. Small Thermal expansivity ;
10. Environmental protection and energy conservation;
11. Easy to install



Using today's advanced twofold extrusion technology for one-off processing with a separate function in each layer:

The surface material adopts the ASA high weather resistant engineering plastic .ASA is a ternary polymer made up of acrylonitrile, styrene and acrylate with outstanding durability, UV resistance and chemical corrosion resistance, which ensures the bright color and luster and superb durability and chemical corrosion resistance of the product; the sublayer material is the extremely tough polyvinyl chloride resin (PVC), which ensures strength while increasing rigidity.





30 years warranty. Color, main color as below. Other colors are available.





Model

HZSY- ASA+PVC

Thickness

2.5±0.1mm

2.8±0.1mm

3.0±0.1mm

Length

customized(must be according the times   of 219mm)

Overall width

1050mm



Effective width

960mm



Purlin spacing

660mm

Weight

2.8mm: 5.6±0.1kg/m2

3.0mm: 6.0±0.1kg/m2


Container Load capacity

Thickness

SQ.M./20 FCL (21 Tons)

SQ.M./40 FCL (26 Tons)

2.5mm

3800

4500

2.8mm

3500

4300

3.0mm

3300

4100

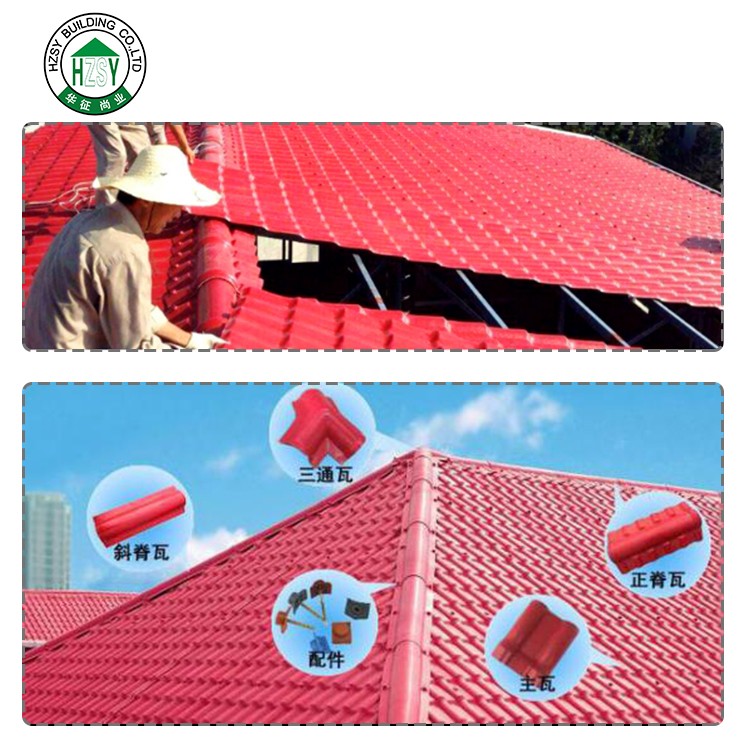

Product picture:




Application:



widely used for residential house, villa, workshop, warehouse, building, greenhouse, sound-insulation walls and advertising boxes etc.We are the authorized supplier of roofing tiles for many government big projects in China as well as Mid-East, South America etc.

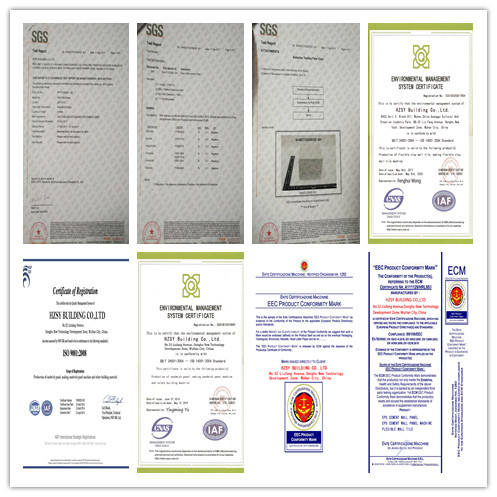

Certification:


 Company Information:



HZSY Building Materials Technology Co., Ltd is a lead manufacturer of new-type engineering materials, specialized in producing selling ASA resin tiles, APVC  weather-resistant engineering tiles, PVC multilayer corrosion-resistant and heat-insulating tiles and other environment-friendly energy-saving products, which are widely used for workshop, warehouse, building, green house, sound-insulation walls, advertising boxes etc.

We have almost 10years solid factory experies, with latest equipment and technology, all our products have passed the evaluation of ISO9001 Quality System Certification. Besides, the  ASA tile has gained the title of Famous Brand. With the high quality and professional production/service team, we are the authorized supplier of roofing tiles for many successful projects in China, Mid East, South America etc..



 We sincerely welcome you to visit us!
